MUVE C360 Multi-Gas Detector for UAS Drone
The FLIR MUVE C360 is a multi-gas detector that can be completely integrated with DJI Matrice 200 and 300 series unmanned aerial systems (UAS) to provide real-time continuous monitoring of chemical hazards while on the move. The sensor block contains 8 sensors, and is configured for O2, LEL, CO, H2S, PID, NO2, Cl2, and SO2.

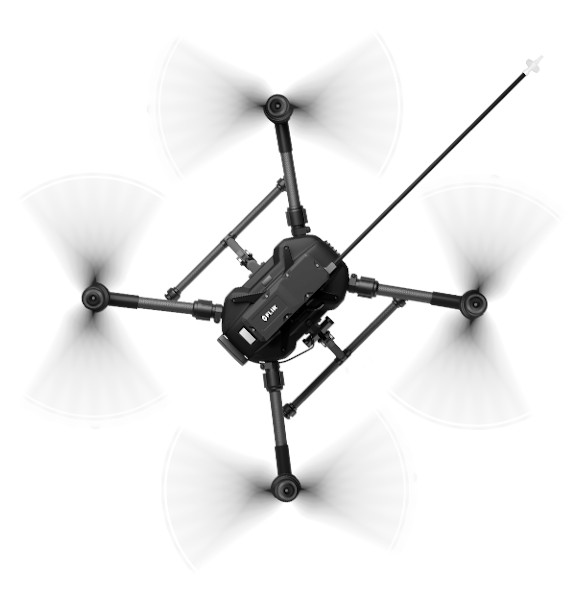

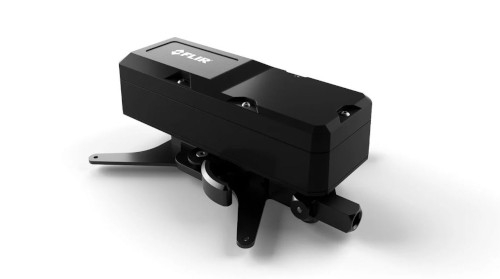

The MUVE C360 sensor block quickly latches to a proprietary integration dock mounted to the UAS. The 18" integrated snorkel extends past the propellers to help prevent rotor wash and ensure accurate readings via the internal sample draw pump.
The FLIR calibration station conducts bump tests and calibrations. Since it features the same dock, the operator can easily connect the sensor block for routine sensor verification. Sensor readouts are prioritized based on alarm conditions and are displayed real-time through the pilot’s user interface displayed.
The MUVE C360 is a time-saving, game-changer for emergency responders, industrial safety officers, and environmental monitoring experts.
Features:
- 8-channel sensor block--including PID, LEL, and 6 other sensors--delivers broad hazard
coverage.
- Preset alarm thresholds to make quicker decisions on-scene
- FLIR VueLink App provides plug-and-play control of the C360, flight operations, and other on-board sensors on the included iPad tablet
- Analyze, log, and access complex data in an easy-to-understand visual overlay
- Install with click-in simplicity via onboard integration dock
The DJI Matrice drones are not included with this purchase.
MUVE C360 Multi-Gas Detector for UAS Drone
SYSTEM OVERVIEW |
Battery Specs |
Powered by the UAS |
Sampling & Analysis |
Real-time detection |
Sensors |
O2, LEL, CO, H2S, PID, NO2, Cl2, SO2 |
Total Weight Payload |
1.5 lb (680.39 g) - C360 with dock and snorkel |
Storage Temperature |
-22 to 158 °F (-30 to 70 °C) |
PHYSICAL FEATURES |
Dimensions (L x W x H) |
6.5 x 2.3 x 2.0" (16.51 x 5.84 x 5.08 cm) - C360 only |
POWER |
Cold Start Time |
90 seconds from cold start |
SAMPLING & ANALYSIS |
Sample Introduction |
Actively pumped via integrated snorkel |
SENSOR BLOCK TECHNOLOGY |
FLIR Calibration Station |
Proprietary automatic calibration design, includes tubing and power adaptor |
Data Storage |
Sensor data and flight information logged on tablet |
Display & Alerts |
FLIR VueLink™ application integrated via tablet connected to the UAS remote controller |
MUVE C360 Multi-Gas Detector for UAS Drone
Configuration Information:
MC-01-A |
MUVE C360 Kit for DJI Matrice 210. Multi-gas detector designed for integration into the DJI Matrice 210 platform. Includes: MUVE C360 multi-gas detector, integration dock for Matrice 210 v1 and v2 aerial platforms, dock mounting hardware, snorkel, spare parts kit, rain cover, dust cover, Quick Start Guide, registration code for FLIR VuePoint Flight control software, and rugged case. |
MC-01-KIT |
MUVE C360 and Calibration Station Assurance Kit for DJI Matrice 210. Multi-gas detector designed for integration into the DJI Matrice 210 platform with calibration station. Includes: MUVE C360 multi-gas detector, integration dock for Matrice 210 v1 and v2 aerial platforms, dock mounting hardware, snorkel, spare parts kit, rain cover, dust cover, Quick Start Guide, registration code for FLIR VuePoint Flight control software, and rugged case. MUVE C360 Calibration Station includes tubing, filters, and connectors shipped in a separate box. |
MC-02-KIT |
MUVE C360 and Calibration Station Assurance Kit for Matrice 300. Multi-gas detector designed for integration into the DJI Matrice 300 platform with calibration station. Includes: MUVE C360 multi-gas detector, integration dock for Matrice 300 aerial platform, dock mounting hardware, snorkel, spare parts kit, dust cover, Quick Start Guide, and rugged case. MUVE C360 Calibration Station includes tubing, filters, and connectors shipped in a separate box. |
MC-01-C |
MUVE C360 Kit for DJI Matrice 300. Multi-gas detector designed for integration into the DJI Matrice 300 platform. Includes: MUVE C360 multi-gas detector, integration dock for Matrice 300 aerial platform, dock mounting hardware, spare parts kit, dust cover, Quick Start Guide, and rugged case. |
Warranty Information:
All extended warranties include system Service and Repair for duration of warranty period. This Warranty covers component defects, repairs for normal wear and tear, component upgrades, software upgrades, and technical support. Warranty does not cover accidental damage or damage caused by misuse.
Extended warranties are also available for the MUVE C360 Calibration Station.
MC360-EX-01-A |
MUVE C360 Extended Service Plan Warranty, 1-Year. Adds an additional 1-Year to standard MUVE Service Plan. |
MC360-EX-02-A |
MUVE C360 Extended Service Plan Warranty, 2-Year. Adds an additional 2-Years to standard MUVE Service Plan Warranty. |
MC360-EX-03-A |
MUVE C360 Extended Service Plan Warranty, 3-Year. Adds an additional 3-Years to standard MUVE Service Plan Warranty. |
Training Information:
MC360-TR-01-A |
MUVE C360 Training. At Customer Facility. One full day of training by a FLIR Field Service Representative, for up to ten (10) students. Trainer travel costs are not included and charged separately. |
